مادربورد گیگابایت مدل B75M کارکرده
  • مادربورد گیگابایت مدل B75M کارکرده thumb 1
  • مادربورد گیگابایت مدل B75M کارکرده thumb 2
  • مادربورد گیگابایت مدل B75M کارکرده thumb 3

نقد و بررسی اجمالی مادربورد گیگابایت مدل B75M کارکرده

مادربورد گیگابایت مدل B75M  کارکرده

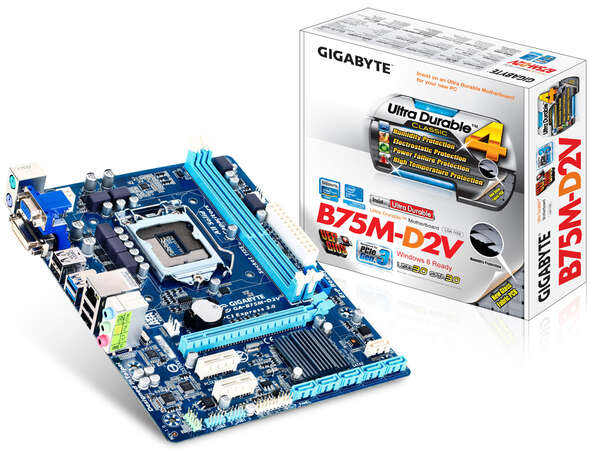

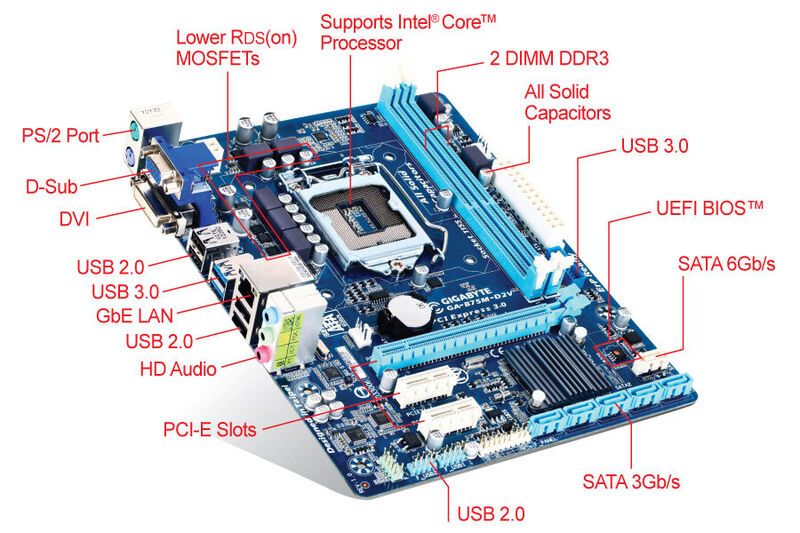

MotherBoard Gigabyte GA-B75M-D2V

  • ارزش خرید به نسبت قیمت
  • عملکرد
  • کیفیت
نقاط قوت
  • دارای دو خروجی
  • قابلیت شارژ تبلت
  • مجهز به فلش LED
  • مقرون به صرفه
نقاط ضعف
  • کیفیت پایین بدنه
CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium®processors/Intel® Celeron® processors in the LGA1155 package
  2. L3 cache varies with CPU
(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
Chipset
  1. Intel® B75 Express Chipset
Memory
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

    1. Dual channel memory architecture

    1. Support for DDR3 2200(OC)/1600/1333/1066 MHz memory modules
      * To support DDR3 1600 MHz, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.

    1. Support for non-ECC memory modules

  1. Support for Extreme Memory Profile (XMP) memory modules
    * To support XMP memory, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.
(Please refer "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor:
  1. 1 x D-Sub port
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
    * The DVI-D port does not support D-Sub connection by adapter.
Audio
  1. Realtek ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
  1. Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
    * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
  2. 2 x PCI Express x1 slots
    (All PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage InterfaceChipset:
  1. 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
  2. 5 x SATA 3Gb/s connectors (SATA2 1~5) supporting up to 5 SATA 3Gb/s devices
USBChipset:
  1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
  2. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x SATA 6Gb/s connector
  4. 5 x SATA 3Gb/s connectors
  5. 1 x CPU fan header
  6. 1 x system fan header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.0/2.0 header
  10. 2 x USB 2.0/1.1 headers
  11. 1 x Clear CMOS jumper

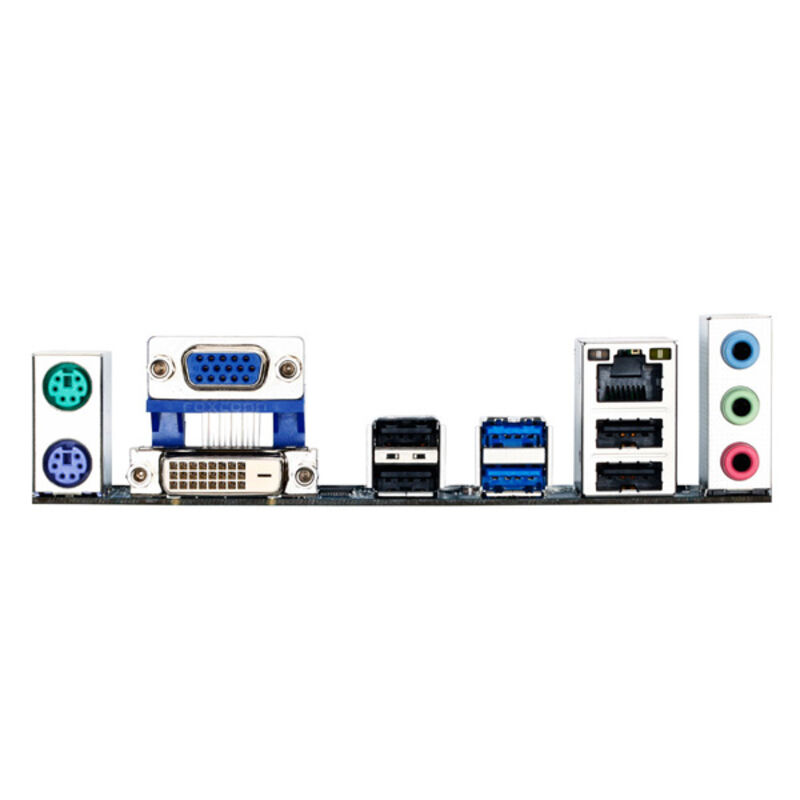

Back Panel Connectors
  1. 1 x PS/2 mouse port
  2. 1 x PS/2 keyboard port
  3. 1 x D-Sub port
  4. 1 x DVI-D port
  5. 2 x USB 3.0/2.0 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
  1. iTE I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
    * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
  1. 1 x 64 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress Install
  4. Support for Easy Tune
    * Available functions in EasyTune may differ by motherboard model.
  5. Support for Smart Recovery 2
  6. Support for Auto Green
  7. Support for ON/OFF Charge
  8. Support for Q-Share
  9. Support for EZ Setup
Bundle Software
  1. Norton Internet Security (OEM version)
  2. Intel® Rapid Start Technology
  3. Intel® Smart Connect Technology
  4. Intel® Small Business Advantage
Operating System
  1. Support for Microsoft® Windows 8/7/XP
Form Factor
  1. Micro ATX Form Factor; 22.6cm x 17.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.



مشخصات فنی مادربورد گیگابایت مدل B75M کارکرده
